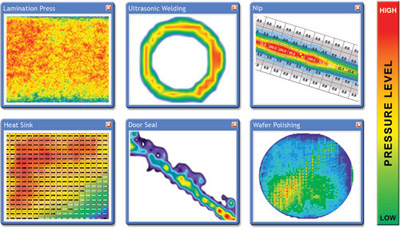

Typical applications Where Tactilus Reveals Surface Contact Pressure Typical applications Where Tactilus® Reveals Surface
Contact Pressure

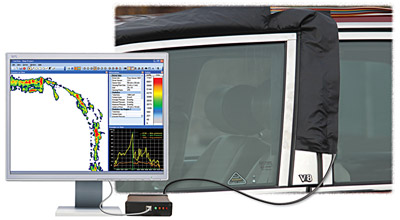

Tactilus software depicting the characterization of pressure distribution and magnitude while the sensor element is positioned
in a door seal
Tactilus® software depicting the characterization of pressure distribution and magnitude while the sensor element is positioned
in a door seal




Specifications

Technology Piezoresistive
Pressure Range 0.1 to 200 PSI (0.007 to 14.1 kg/cm<sup>2</sup>)
Array Size Up to 64 x 256 lines
Thickness From 12 mils (0.3 mm)
Mat Sensor Pad Size Customizable up to 150” (381 cm)
Scan Speed Up to 1,000 hertz
Min Sensing Point Size 0.188 in2 (1.21 cm2)
Strechability Up to 158%
Software Compatibility Windows 8, 7, XP
Accuracy ± 10%
Repeatability ± 2%
Hysteresis ± 5%
Non-linearity ± 1.5%
Calibration NIST Traceable


Request A Demo


Tactilus® Real-Time Surface Pressure Mapping Technology


Tactilus® is a matrix-based tactile surface sensor — essentially an "electronic skin" that records and interprets pressure distribution and magnitude between any two contacting or mating surfaces and assimilates the collected data into a powerful Windows® based tool kit. Each Tactilus® sensor is carefully assembled to exacting tolerances and is individually calibrated and serialized.



Basics of Tactilus® Technology


The architectural philosophy of Tactilus® is modular, allowing for portability, easy scalability, and simultaneous data collection from up to four discrete sensor pads. Tactilus® employs sophisticated mathematical algorithms that intelligently separate signal from noise, and advanced electronic shielding techniques maximize the sensor's immunity to noise, temperature and humidity.
Extensive calibration techniques ensure accuracy during testing, while also saving valuable time by avoiding extensive calibration procedures. Our next generation software interface also improves the accuracy of the readings by taking into consideration the creep and hysteris effects natural to the sensors.

Any application or test where pressure lies between 0.1 PSI (0.007 Kg/cm<sup>2</sup>) to 2,000 PSI (140.61kg/cm<sup>2</sup>) will benefit from a Tactilus® analysis. Our customization capabilities include sensors that will conform to difficult shapes like door seals, seats, wipers, tires, heat sealing machines, wafer polishers, lamination presses, between rollers, and many others.



Software Features


Tactilus® is a tool kit that consists of an electronic sensor element ("skin"), signal conditioning electronics and software. The sensor skin is a thin flexible or rigid sheet that is densely packed with sensing points or pixels. These sensing points can be spaced as close as 2 mm (0.08") apart and can collect data as rapidly as 1,000 readings per second.

Software Features
  • 2D, 3D and 360 degree image rendering with extensive user control
  • Complete software library
  • Force integration and average pressure
  • Highly programmable report generator
  • Local point and region-of-interest (ROI) analysis
  • Max, minimum and average values
  • Pressure vs. time graph and pressure histogram
  • Sophisticated calibration control
  • Easily exportable data to Excel, ASCII or Access formats

Hardware Features


The Tactilus® sensing element is very thin, allowing adaptation over curved surfaces and placement in invasive intolerant environments. The internal composition of the Tactilus® element is very durable and can be utilized thousands of times or more before replacement is necessary.

Hardware Features
  • Pre-calibrated
  • Sensor conformability is matched to the performance requirements of your application
  • Discharge speed of the capacitor is 83 microseconds
  • Minimum spacing of 2mm (0.08")
  • Pressure detection capabilities down to 0.01 PSI (0.007 kg/cm<sup>2</sup>)
  • Rapid response rate
  • Highly resistant to electromagnetic noise, temperature and humidity fluctuations
  • Serial, USB, Bluetooth connectivity and ultra wide band capability
